| Item | Specification |
| Size | 3.5inch |
| Display mode | Transmissive TFT |
| Part NO. | RT35QV006B |
| Resolution | 320*240 |

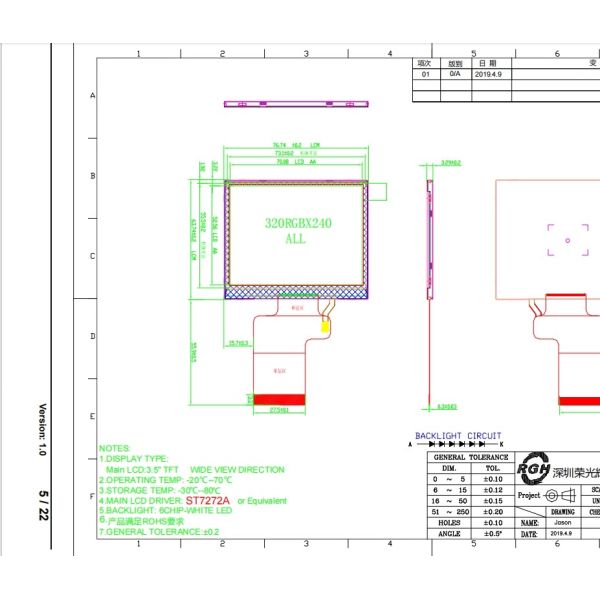

| Outline size | 76.74W) X63.74(H) X3.29(T) |
| Active area | 70.08(W) X52.56 (H) |
| View direction | ALL o’clock |
| Piexl pitch | 320(RGB)X 240 |
| Interface | RGB |
| Backlight | 6LEDS |
| Surface luminance | 300cd/m2 |
| Logic voltage | 2.5V-3.3V |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| NO. | Symbol | Leve | Function |
| 1-2 | LEDK | | LED- |
| 3-4 | LEDA | | LED+ |
| 5-7 | NC | | NC |
| 8 | RESET | | Reset signal input terminal Active at "L" |
| 9 | Cs | | Chip select signal interfaco |
| 10 | SCL | | Clock pin of serial interface |
| 11 | SDA | | Data input pin in serial mode |
| 12-19 | B0-B7 | | Blue Data |
| 20-27 | G0-G7 | | Glue Data |
| 28-35 | R⁰-R7 | | Rlue Data |
| 36 | HSYNC | | Horizontal sync inout in RGB mode |
| 37 | VSYNC | | Vertical sync input in RGB mode. |
| 38 | DCLK | | CLOCK signal.Latchingdata at the rising edge. |
| 39-40 | NC | | NC |
| 41-42 | VCC | | Digital Power(3.3v) |
| 43-51 | NC | | NC |
| 52 | DE | | Display enable pin from controller |
| 53-54 | GND | | Power ground |
